What are the primary methods for shielding windows against RF/EMI signals, and how do they compare?

The two primary methods are laminated glass with fine wire mesh and transparent conductive coatings (TCCs). Fine wire mesh offers high attenuation (60-100+ dB) and robustness but may cause visual distortion and add weight. TCCs provide moderate to high attenuation (30-50+ dB) with excellent clarity and dual-purpose solar/EMI control, but require edge termination and grounding.

What standards govern RF/EMI shielding for secure facilities, and what do they specify?

Key standards include TEMPEST (NSA SDIP-27/TSEC), which defines shielding effectiveness against electromagnetic eavesdropping, measured in decibels (dB) across frequencies; NIST FIPS 140-3 and SP 800-88, addressing cryptographic module security and EMI containment in data centers; and IEC 61000-5-7, an international standard for shielding enclosure performance and testing.

Why is penetration management critical in RF/EMI shielding systems, and what solutions are used?

Penetration management is critical because doors, vents, ducts, and conduits are potential weak points that can leak signals. Solutions include shielded doors with gasketed knife-edge seals, waveguide air vents (honeycomb metal structures) to block RF signals while allowing airflow, and filtered power/data lines or fiber optic feeds to prevent conducted emissions.

What is the primary purpose of RF/EMI shielding in a boardroom?

To prevent the interception of compromising electromagnetic emanations from electronic devices (computers, projectors, phones), thereby protecting sensitive visual and data transmissions from remote eavesdropping, in compliance with standards like TEMPEST.

How does window film contribute to RF shielding?

Specialized window films incorporate transparent conductive coatings (e.g., silver or ITO) or fine metallic meshes that create a continuous conductive layer over the glass. When properly grounded and integrated with the building's shielding system, they attenuate RF signals attempting to pass through the window, which is otherwise a major vulnerability.

What is the difference between EMI shielding and TEMPEST?

EMI shielding is a broad technical practice to control electromagnetic interference for equipment functionality. TEMPEST is a specific, classified set of U.S. government standards focused on shielding techniques and testing to prevent eavesdropping on compromising emanations for national security purposes. TEMPEST is a subset of EMI shielding with a security intent.

Can existing windows be retrofitted for TEMPEST-level shielding?

Yes, but with significant complexity. Existing glazing can be laminated with shielded film or replaced with pre-fabricated shielded glass units. However, the entire perimeter must be electrically connected to a continuous grounding system, and all other penetrations (walls, doors, vents) in the room must be brought up to the same shielding standard, making a full-room retrofit a major project.

What are the key metrics for specifying shielding performance?

Shielding Effectiveness (SE), measured in decibels (dB) of signal attenuation across a defined frequency range (e.g., 10 kHz to 18 GHz). A higher dB value indicates greater blocking power. For example, 40 dB attenuation reduces signal strength by 10,000 times. Specifications must define the required dB level at specific frequencies relevant to the threat.

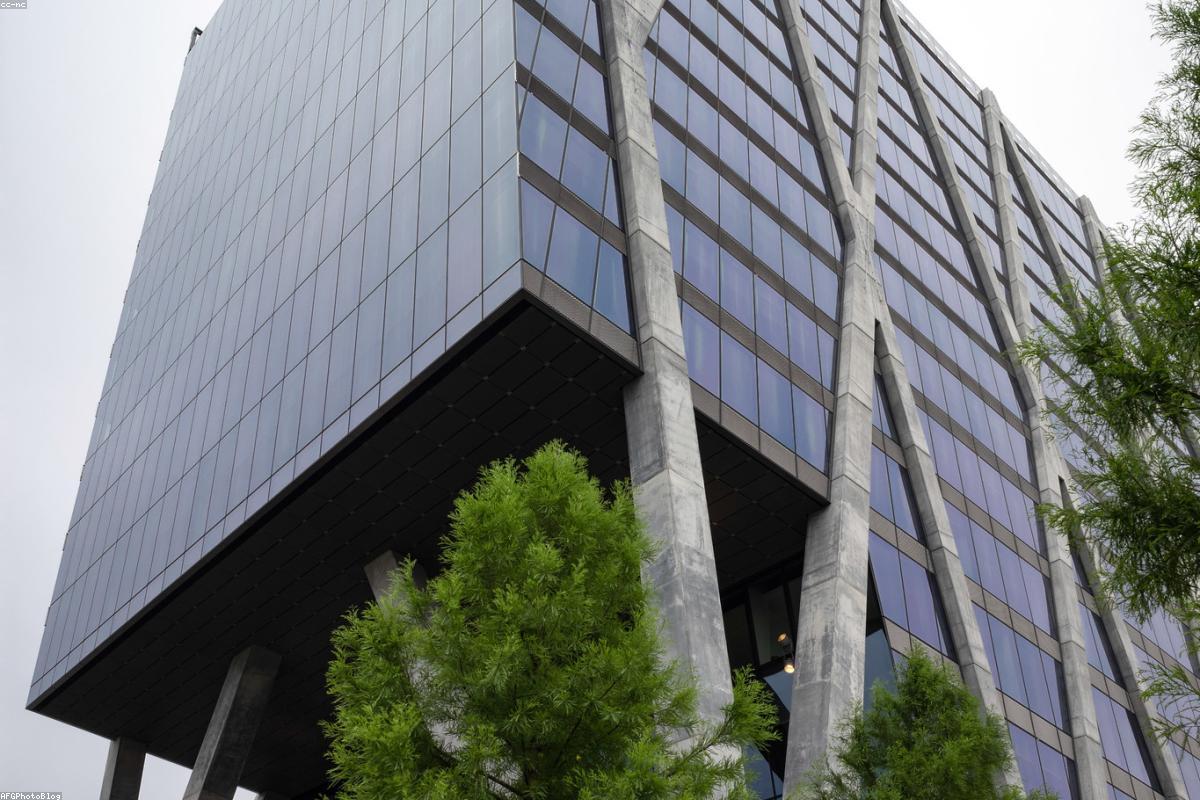

RF Shielding & Signal Defense: High-Security Window Film

Radio Frequency (RF) and Electromagnetic Interference (EMI) Shielding for Secure Facilities

Protecting sensitive data from electronic eavesdropping requires a comprehensive shielding strategy that integrates architectural shielding, specialized window film, and strict control of all penetrations to mitigate compromising emanations, aligning with TEMPEST and related standards.

Understanding the Threat: Compromising Emanations

Sensitive electronic equipment (computers, phones, displays) unintentionally emits electromagnetic radiation (EMR) as radio frequency (RF) signals or conducted emissions. These compromising emanations can be intercepted, reconstructed, and exploited to steal data from significant distances. RF/EMI shielding creates a barrier—a Faraday cage or shielded enclosure—to contain these signals and block external interference or surveillance attempts.

Core Standards: TEMPEST, NIST, and IEC

Formal standards define shielding requirements and testing methodologies:

TEMPEST (NSA SDIP-27/TSEC): The U.S. government's suite of standards for shielding against electromagnetic eavesdropping. It classifies shielding effectiveness (SE) for enclosures, often measured in decibels (dB) of attenuation across a broad frequency spectrum.
NIST FIPS 140-3 & SP 800-88: Address cryptographic module security and media sanitization, with implications for EMI containment in secure data centers.
IEC 61000-5-7: An international standard specifying performance requirements and testing for shielding enclosures.

The Architectural Shielding Hierarchy

Effective shielding is a system, with the weakest point defining overall performance.

1. Structural Shielding: Walls, Floors, and Ceilings

Typically involves continuous conductive layers (e.g., copper or aluminum sheets, specialized conductive paints/plasters, welded steel panels). All seams must be electrically bonded to ensure continuity.

2. The Critical Vulnerability: Windows and Glazing

Standard glass is transparent to RF signals. Shielding windows is paramount and is achieved through:

Laminated Glass with Fine Wire Mesh: A conductive wire grid (often copper or aluminum) laminated between glass panes provides high shielding effectiveness (often 60-100 dB attenuation).
Transparent Conductive Coatings (TCCs): Sputter-coated, nanometer-thin layers of silver or indium tin oxide (ITO) on film or glass provide EMI shielding while maintaining visibility and solar control.

Shielding Method	Attenuation Range	Key Advantages	Considerations
Fine Wire Mesh Lamination	High (60-100+ dB)	Proven, robust, high SE	Potential for visual distortion, heavier glass
Transparent Conductive Coating (TCC)	Moderate to High (30-50+ dB)	Excellent clarity, dual-purpose (solar/EMI)	Requires edge termination/connection to grounding system

3. Penetration Management: The Weakest Links

Every door, vent, duct, and conduit is a potential leak. Solutions include:

Shielded Doors: Gasketed doors with knife-edge seals.
Waveguide Air Vents: Honeycomb metal structures that allow airflow but block RF signals above a cutoff frequency.
Filtered Power & Data Lines: All cables entering the space require EMI/RFI filters or fiber optic feeds (which are non-conductive).

Implementation for Boardrooms & SCIFs

For Sensitive Compartmented Information Facilities (SCIFs) or corporate secure rooms:

Risk Assessment & Specification: Define the required shielding effectiveness (dB level and frequency range) based on the threat model and data classification.
Integrated Design: Engage architects, security consultants, and shielding specialists from the outset. The window film or glazing system must be specified to integrate with the wall shielding and grounding grid.
Professional Installation & Bonding: The shielding system's performance depends on perfect electrical continuity. All components—window film edges, wall panels, doors—must be bonded to a common ground.
Testing & Certification: Post-construction, the enclosure must be tested (e.g., using a network analyzer or signal generator) to verify it meets the specified attenuation across frequencies before accreditation.

Beyond TEMPEST: Holistic Data Security

RF shielding is one layer of a defense-in-depth strategy:

Acoustic Security: Sound masking and vibration damping to prevent acoustic eavesdropping.
Visual Security: Visual light opacity controls.
Cyber Hygiene: Strong encryption and air-gapped systems remain essential, as shielding is a physical layer of protection.
